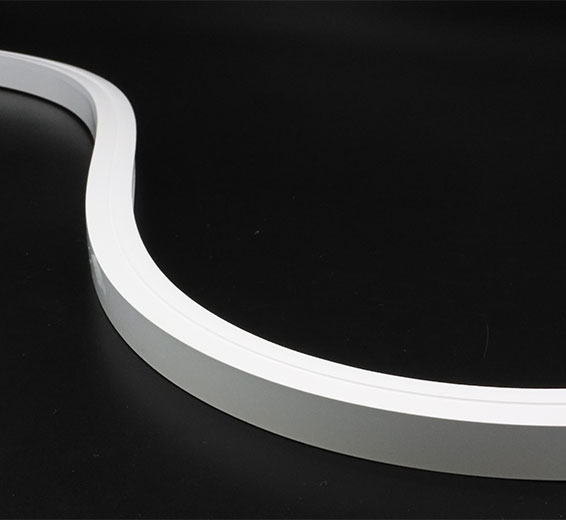

UN-BJ-DMX-DC24-5050RGB-60D10S-14.4-1616-Z-IP65

One bin for luminous uniformity, soft, no light spot;
Great performance under the operating temperature -20 ° C ~ +45 ° C .
Flame & saltwater resistant, IP65, a great many varieties of light colors well-applied for different requi-rements.

Parameter Details

Bending Direction:

Top bend
Color:

Magic color
Control mode:

DMX
Led Type:

5050
Led/M:

60
Power per meter:

14.4W
Working temperature:

-20°C-45°C
Voltage:

DC24V
Lumens output：

R

41
G

142
B

35
RGBW

-

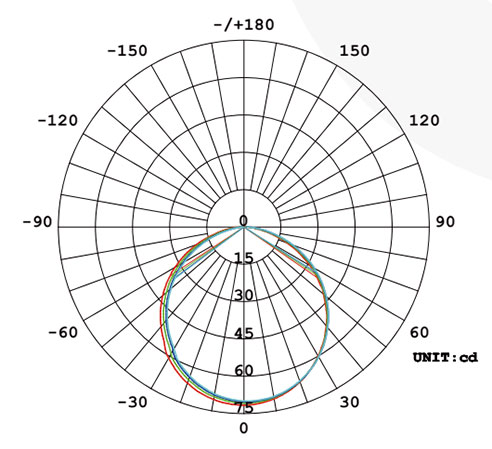

Light Distribution

AVERAGE BEAM ANGLE(50%):111.9 DEG

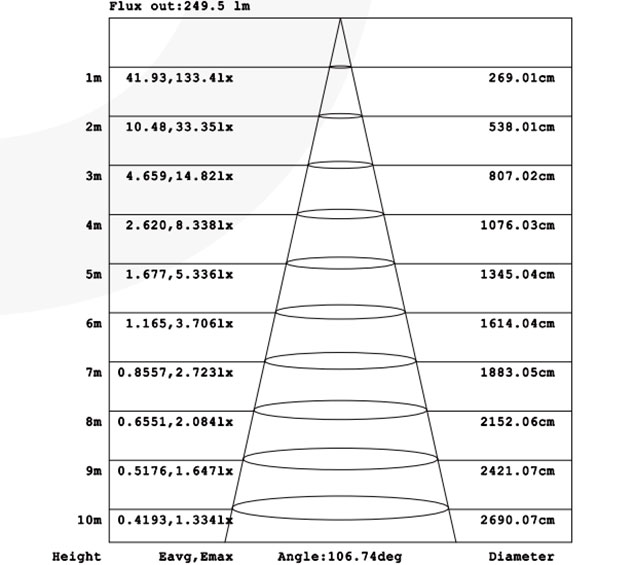

Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.

download

UN-BJ-DMX-DC24-5050RGB-60D10S-14.4-1616-Z-IP65-All colors light-up_IESNA95.IES

UN-BJ-DMX-DC24-5050RGB-60D10S-14.4-1616-Z-IP65-All colors light-up-EN

UN-BJ-DMX-DC24-5050RGB-60D10S-14.4-1616-Z-IP65-BLUE.IES

UN-BJ-DMX-DC24-5050RGB-60D10S-14.4-1616-Z-IP65-BLUE-EN

UN-BJ-DMX-DC24-5050RGB-60D10S-14.4-1616-Z-IP65-GREEN_IESNA95.IES

UN-BJ-DMX-DC24-5050RGB-60D10S-14.4-1616-Z-IP65-GREEN-EN

UN-BJ-DMX-DC24-5050RGB-60D10S-14.4-1616-Z-IP65-RED_IESNA95.IES

UN-BJ-DMX-DC24-5050RGB-60D10S-14.4-1616-Z-IP65-RED-EN

UN-BJ-DMX-DC24-5050RGB-60D10S-14.4-1616-Z-IP65
