UN-DC24-2835-128-9.6-9740-W8-3M
  • One bin for luminous uniformity, soft, no light spot;
  • First-class Leds from TaiWan famous brand Edison;
  • Ultra-high CRI up to 97 for premium color rendering;
  • Well-recognized for long-time use.
Parameter Details
  • Led Type:
    SMD2835
  • Led/M:
    128
  • Color:
    Static color-white
  • Power per meter:
    9.6
  • Control Mode:
    Swtich/Dimming
  • Working temperature:
    -20°C-45°C
  • Voltage:
    DC24V
  • Lumens output:
  • 2700K
    1200lm/M
  • 3000K
    1250lm/M
  • 3500K
    1280lm/M
  • 4000K
    1300lm/M

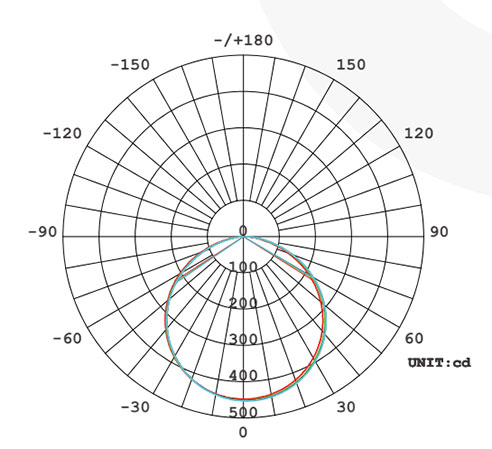

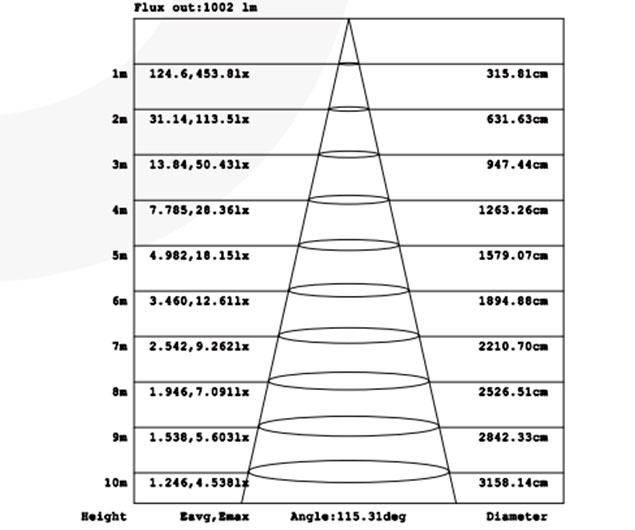

Light Distribution
AVERAGE BEAM ANGLE(50%):115.4 DEG

Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.
