UN-BJ-DC24-2835-168-9.6-940-1010-Z-IP65

One bin for luminous uniformity, soft, no light spot;
Great performance under the operating temperature -20 ° C ~ +45 ° C .
A wide variety of installation accessories for applications;
Flame & saltwater resistant, IP65, a great many varieties of dimensions well-applied for different requirements.

Parameter Details

Bending Direction:

Top bend
Color:

Static color-White
Control mode:

Switch/Dimming
Led Type:

2835
Led/M:

168
Power per meter:

9.6W
Working temperature:

-20°C-45°C
Voltage:

DC24V
Lumens output：

2700K

666lm/M
3000K

685lm/M
4000K

706lm/M
6000K

705lm/M

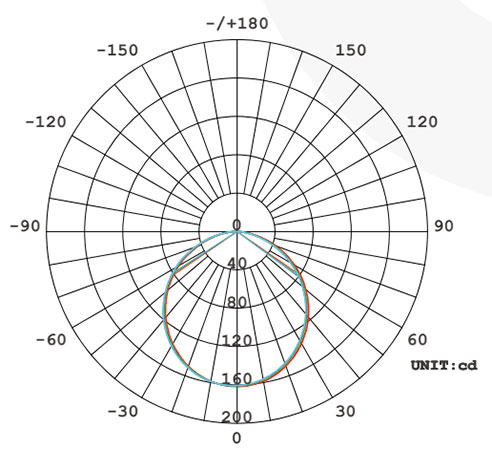

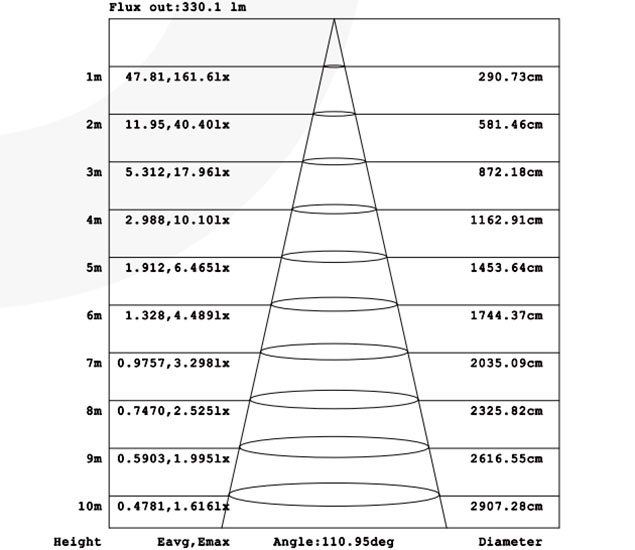

Light Distribution

AVERAGE BEAM ANGLE(50%):111.3 DEG

Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.

download

UN-BJ-DC24-2835-168-9.6-9xx-1010-Z-IP65-EN

UN-BJ-DC24-2835-168-9_IESNA95.IES

UN-BJ-DC24-2835-168-9.6-940-1010-Z-IP65
