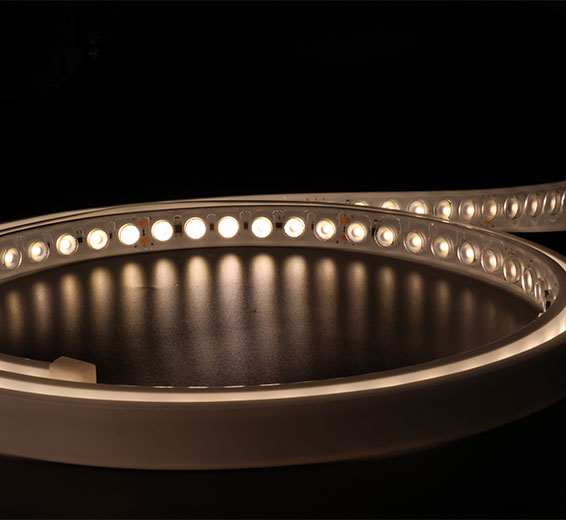

UN-AC220-2835-60-14-940-W16-T301-UD

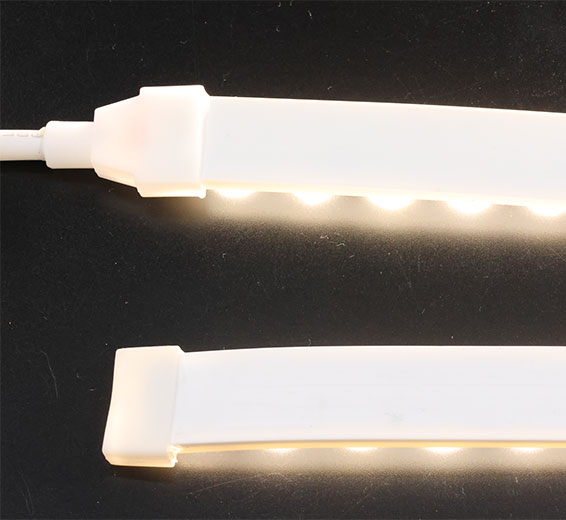

Luminous uniformity, soft, no light spot;
Great performance under the operating temperature -20 ° C ~ +45 ° C ;
Ultra-long up to 25meter per roll for long-distance application;

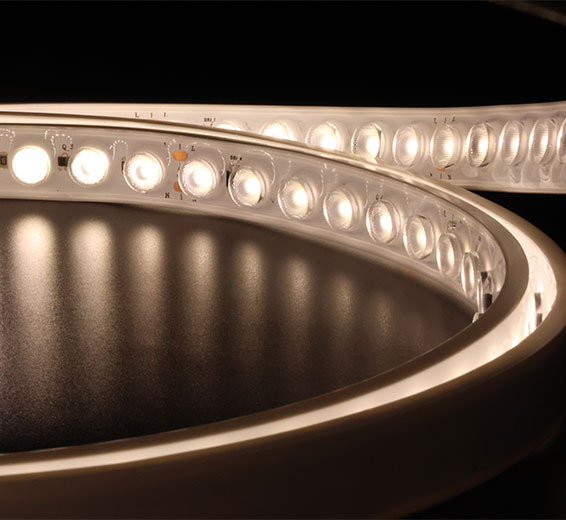

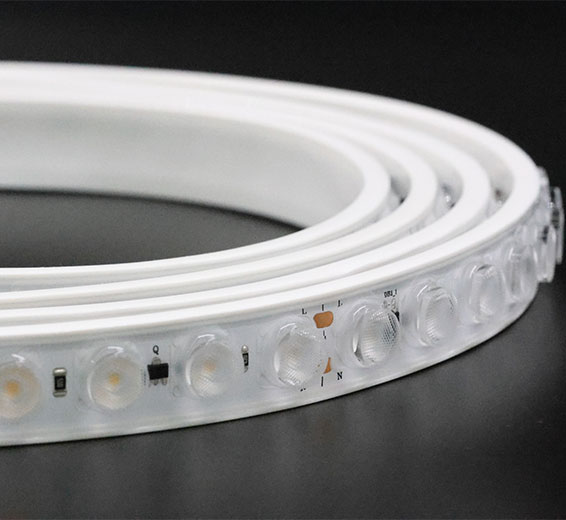

With lens angle 30 ° to achieve the long-distance washing light;
Well-certified for security.

Parameter Details

Led Type:

SMD2835
Led/M:

60
Color:

Static color-white
Power per meter:

14W
Control Mode:

Swtich/Dimming
Working temperature:

-20°C-45°C
Voltage:

DC220V
Lumens output：

2700K

1250lm/M
3000K

1300lm/M
3500K

1350lm/M
4000K

1400lm/M

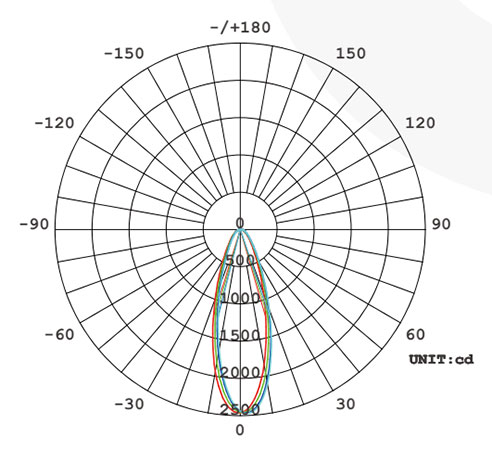

Light Distribution

AVERAGE BEAM ANGLE(50%):33.5 DEG

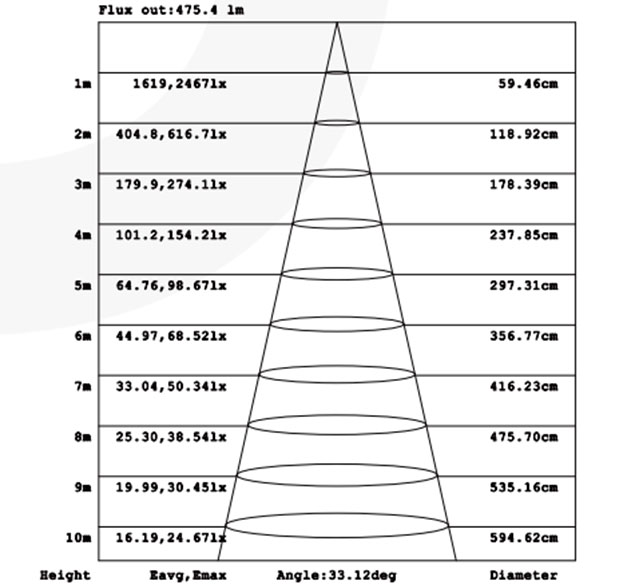

Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.

download

UN-AC220-2835-60-14-940-W16-T301-UD_IESNA95.IES

UN-AC220-2835-60-14-940-W16-T301-UD-EN

UN-AC220-2835-60-14-940-W16-T301-UD
