UN-BJ-DC24-2835-140-12-930-1212-ZC-IP65

home Products Neon Strip

UN-BJ-DC24-2835-140-12-930-1212-ZC-IP65

Integrated Silicon-extrusion technological process,Uniform lighting,Top-bend & Side-bend;
Super-slim molded end cap of same size,Multiple wires output,Seamless connection;
10M driven by one end ,full accessories,Easy to intall profile,Stable and secure.

Parameter Details

Bending Direction:

3D
Color:

Static color-White
Control mode:

Switch/Dimming
Led Type:

2835
Led/M:

140
Power per meter:

12W
Working temperature:

-20°C-45°C
Voltage:

DC24V
Lumens output：

2700K

748lm/M
3000K

798m/M
4000K

845lm/M
6000K

890lm/M

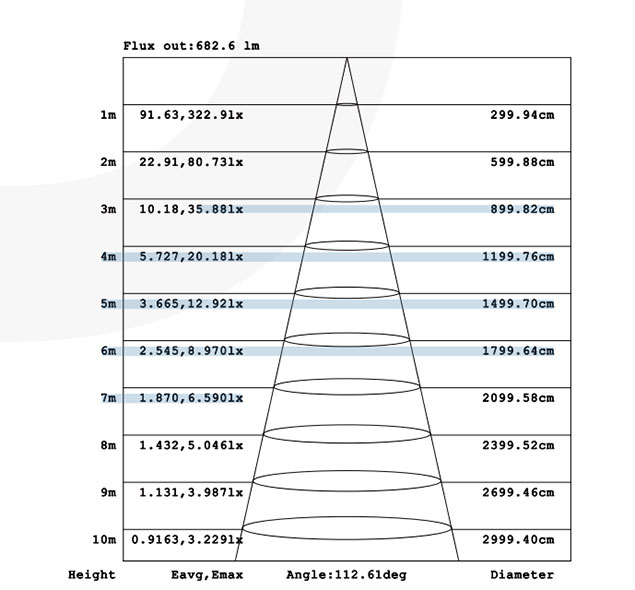

Light Distribution

AVERAGE BEAM ANGLE(50%):113.1DEC

Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.

download

UN-BJ-DC24-2835-140-12-930-1212-ZC-IP65-EN

UN-BJ-DC24-2835-140-12-930-1212-ZC-IP65

UN-BJ-DC24-2835-140-12-930-1212-ZC-IP65.pdf
