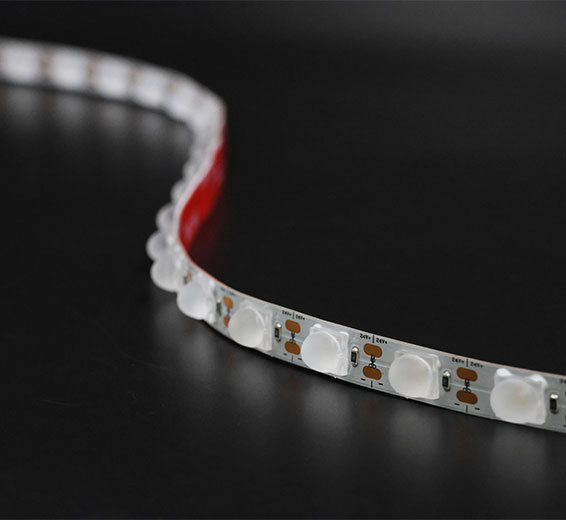

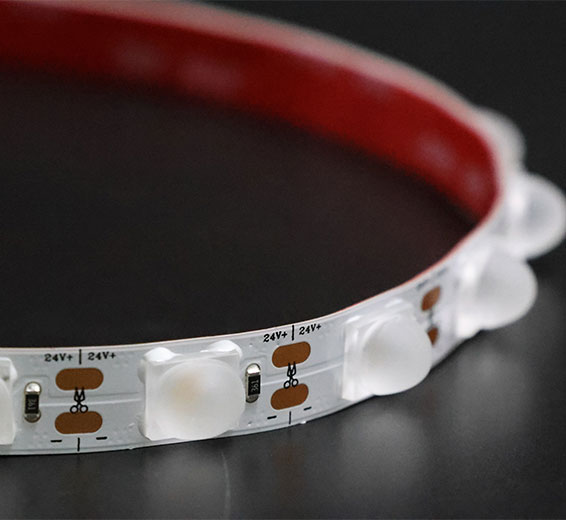

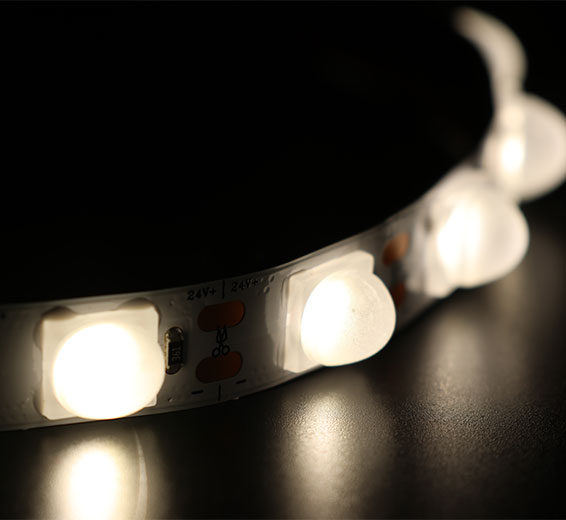

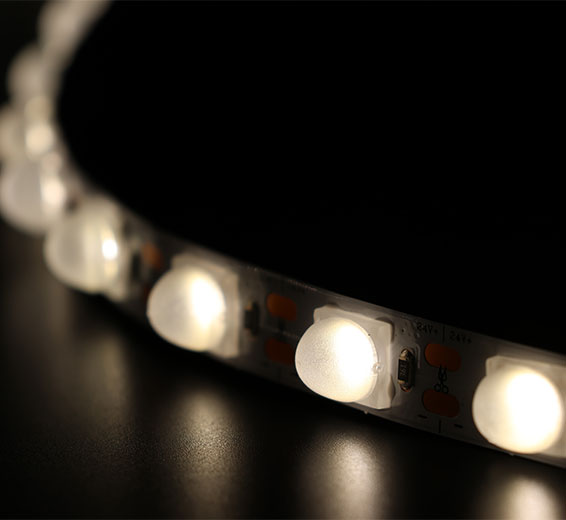

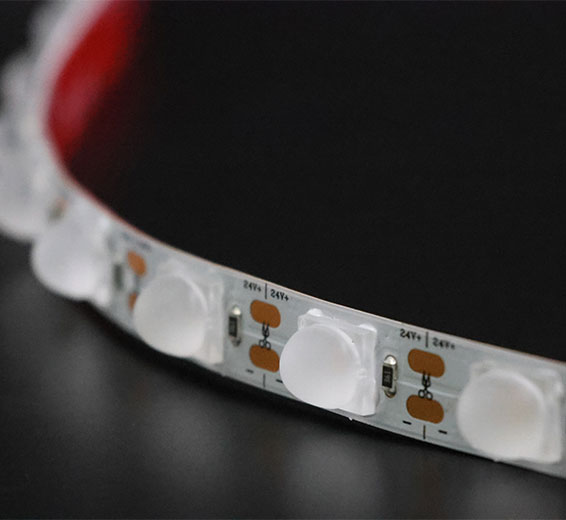

UN-DC24-2835-40-16.5-940-W12-T4560-DC

home Products Flexible Lens Wall-washer

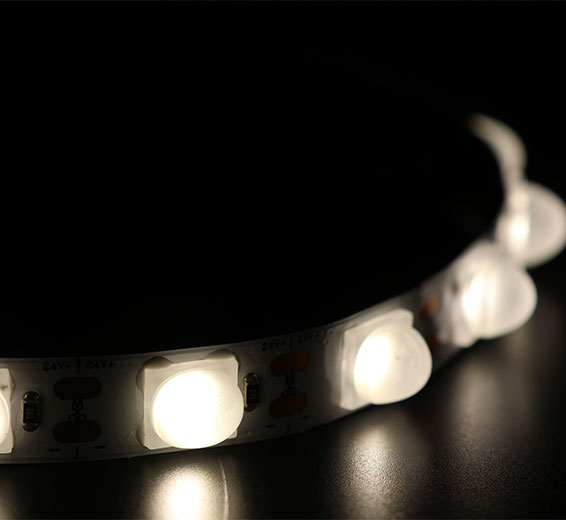

UN-DC24-2835-40-16.5-940-W12-T4560-DC

High luminous efficiency LED professional optical lens;
With lens angle 45 * 60 ° to achieve long-distance washing light ;
IP20, exquisite appearance, 3M tape, easy quick installation;
5 years warranty, lifespan > 50000Hours

Parameter Details

Led Type:

SMD2835
Lens Angle:

45*60
Led/M:

40
Bending Direction:

Top bend
Color:

Static color-white
Power per meter:

16.5W
Control Mode:

Swtich/Dimming
Working temperature:

-20°C-45°C
Voltage:

DC24V
Lumens output：

2700K

1236lm/M
3000K

1442lm/M
4000K

1648lm/M
6000K

1566lm/M

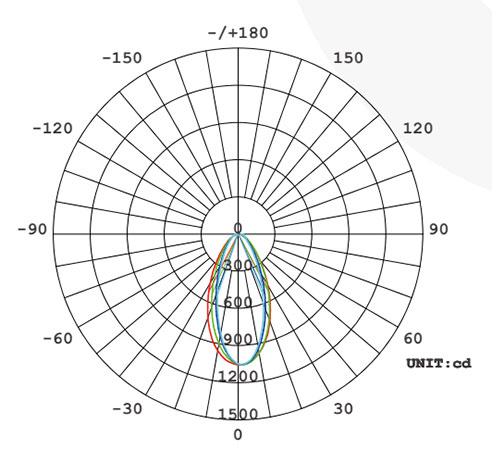

Light Distribution

AVERAGE BEAM ANGLE(50%):50.5DEC

download

UN-DC24-2835-40-16.5-9xx-W12-T4560-DC

UN-DC24-2835-40-16.5-940-W12-T301-UD-DC-EN

UN-DC24-2835-40-16.5-940-W12-T301-UD-DC.IES
