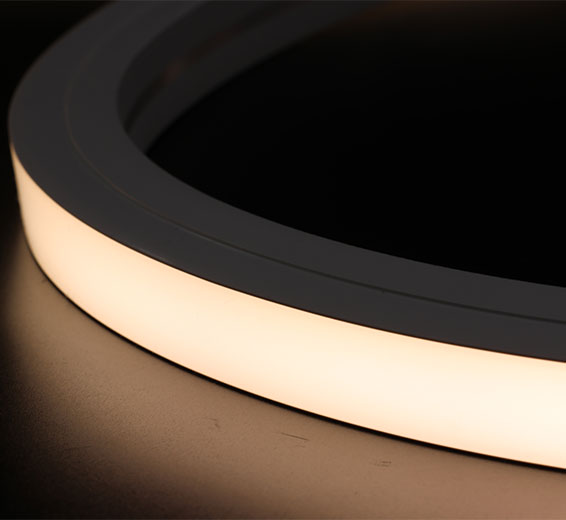

UN-BJ-DMX-DC24-2835-120D10S-18-940-2020-Z-IP65
  • One bin for luminous uniformity, soft, no light spot;
  • Great performance under the operating temperature -20 ° C ~ +45 ° C .
  • Flame & saltwater resistant, IP65, widely used for indoor and outdoor wash light and design.
Parameter Details
  • Bending Direction:
    Top bend
  • Color:
    Tunable white
  • Control mode:
    DMX
  • Led Type:
    2835
  • Led/M:
    120
  • Power per meter:
    18W
  • Working temperature:
    -20°C-45°C
  • Voltage:
    DC24V
  • Lumens output:
  • 2700K
    650lm/M
  • 3000K
    682lm/M
  • 4000K
    718lm/M
  • 6000K
    715lm/M

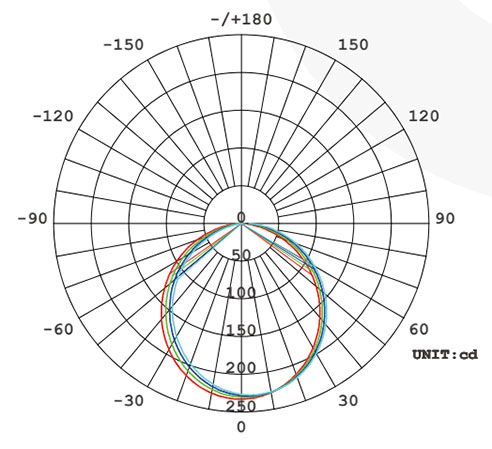

Light Distribution
AVERAGE BEAM ANGLE(50%):108.7 DEG

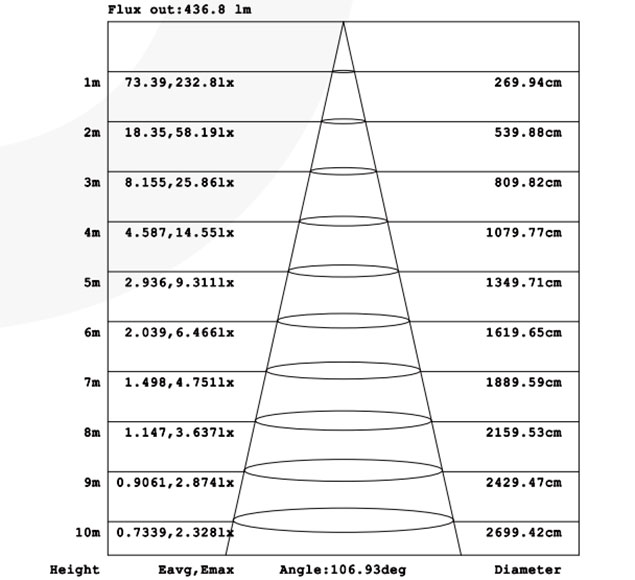

Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.
