UN-BJ-DMX-DC24-2835-120D10S-18-940-1616-Z-IP65

One bin for luminous uniformity, soft, no light spot;
Great performance under the operating temperature -20 ° C ~ +45 ° C .
Flame & saltwater resistant, IP65, widely used for indoor and outdoor wash light and design.

Parameter Details

Bending Direction:

Top bend
Color:

Tunable white
Control mode:

DMX
Led Type:

2835
Led/M:

120
Power per meter:

18W
Working temperature:

-20°C-45°C
Voltage:

DC24V
Lumens output：

2700K

693lm/M
3000K

715lm/M
4000K

756lm/M
6000K

750lm/M

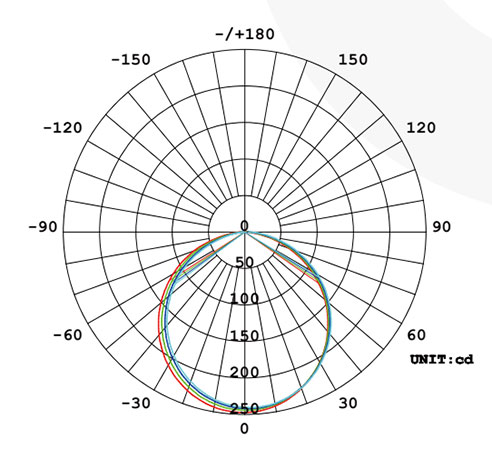

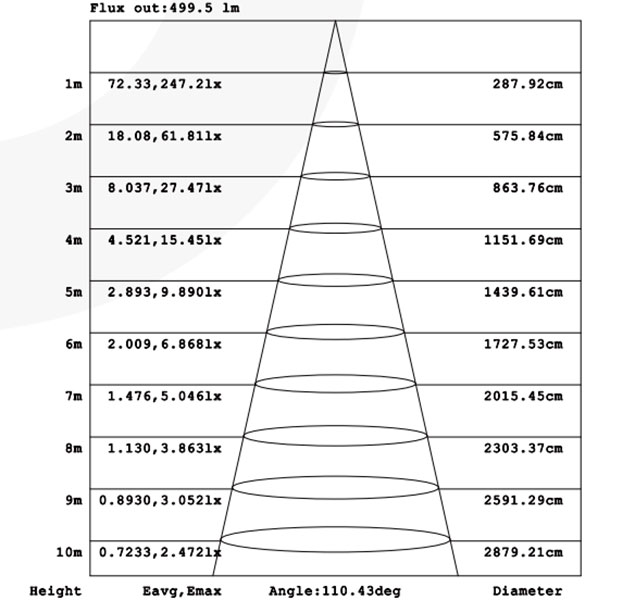

Light Distribution

AVERAGE BEAM ANGLE(50%):112.5 DEG

Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.

download

UN-BJ-DMX-DC24-2835-120D10S-18-940-1616-Z-IP65_IESNA95.IES

UN-BJ-DMX-DC24-2835-120D10S-18-940-1616-Z-IP65-EN

UN-BJ-DMX-DC24-2835-120D10S-18-9xx-1616-Z-IP65
