UN-BJ-DC24-2835-168-9.6-940-0612-C-IP65

home Products Neon Strip

UN-BJ-DC24-2835-168-9.6-940-0612-C-IP65

One bin for luminous uniformity, soft, no light spot;
Great performance under the operating temperature -20 ° C ~ +45 ° C .
Flame & saltwater resistant, IP65, super small size,
widely used for a variety of outlined places.

Parameter Details

Bending Direction:

Side bend
Color:

Static color-White
Control mode:

Switch/Dimming
Led Type:

2835
Led/M:

168
Power per meter:

9.6W
Working temperature:

-20°C-45°C
Voltage:

DC24V
Voltage:

DC24V
Lumens output：

2700K

150lm/M
3000K

271lm/M
4000K

282lm/M
6000K

275lm/M

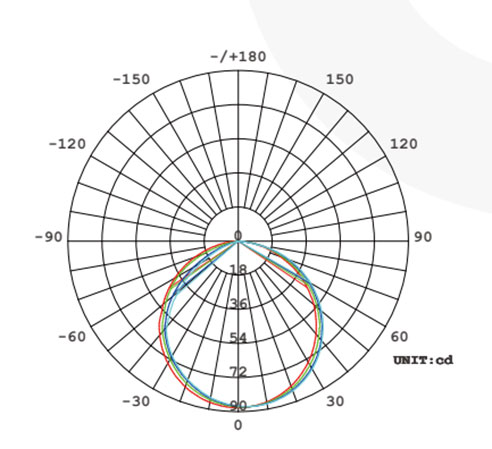

Light Distribution

AVERAGE BEAM ANGLE(50%):111.1 DEG

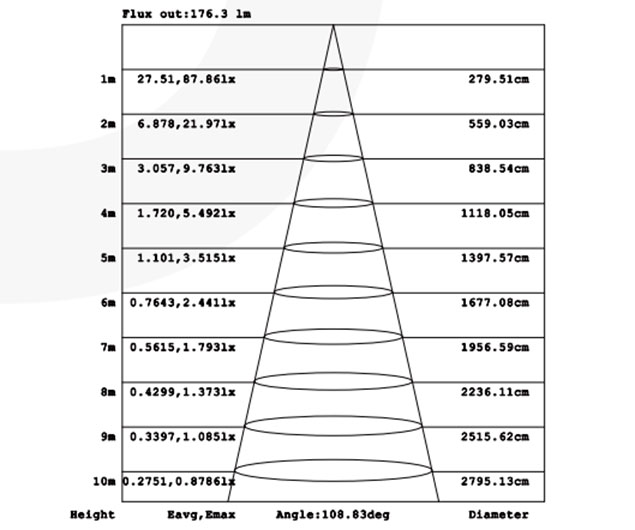

Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.

download

UN-BJ-DC24-2835-168-9_IESNA95.IES

UN-BJ-DC24-2835-168-9.6-9xx-0612-C-IP65-EN

UN-BJ-DC24-2835-168-9.6-940-0612-C-IP65
