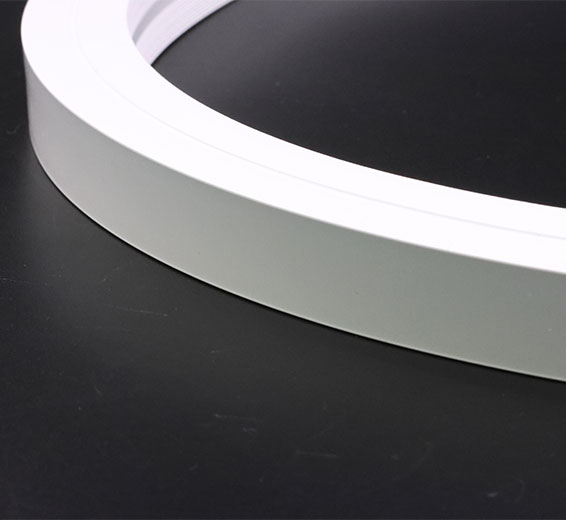

UN-BJ-DC24-2835-120-14.4-940-2020-Z-IP65

home Products Neon Strip

UN-BJ-DC24-2835-120-14.4-940-2020-Z-IP65

One bin for luminous uniformity, soft, no light spot;
Great performance under the operating temperature -20 ° C ~ +45 ° C .
Flame & saltwater resistant, IP65, widely used for indoor and outdoor wash light and design.

Parameter Details

Bending Direction:

Top bend
Color:

Static color-White
Control mode:

Switch/Dimming
Led Type:

2835
Led/M:

120
Power per meter:

14.4W
Working temperature:

-20°C-45°C
Voltage:

DC24V
Lumens output：

2700K

805lm/M
3000K

844lm/M
4000K

860lm/M
6000K

859lm/M

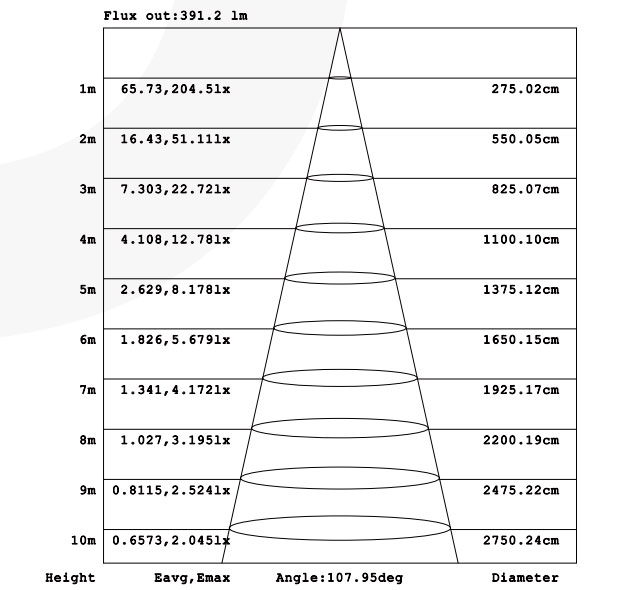

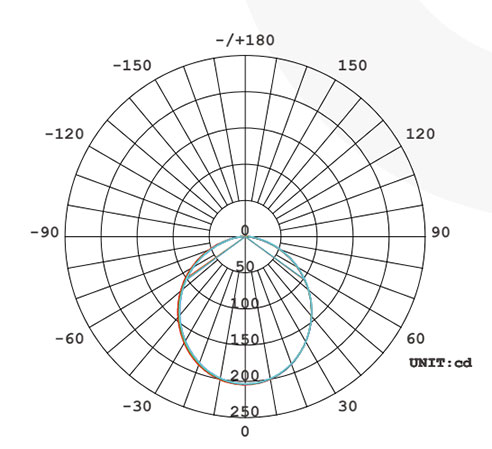

Light Distribution

AVERAGE BEAM ANGLE(50%):108.5 DEG

Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.

download

UN-BJ-DC24-2835-120-14.4-940-2020-Z-IP65_IESNA95.IES

UN-BJ-DC24-2835-120-14.4-940-2020-Z-IP65-EN

UN-BJ-DC24-2835-120-14.4-9xx-2020-Z-IP65
