UN-BJ-DC24-2835-56-10-930-W10-1213-ZC-IP65-T23

home Products Flexible Lens Wall-washer

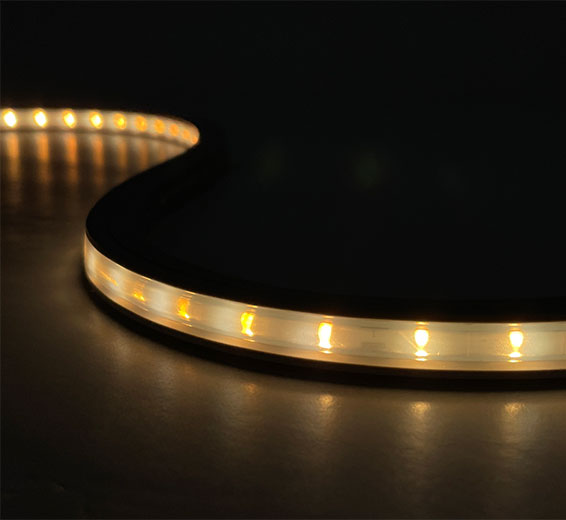

UN-BJ-DC24-2835-56-10-930-W10-1213-ZC-IP65-T23

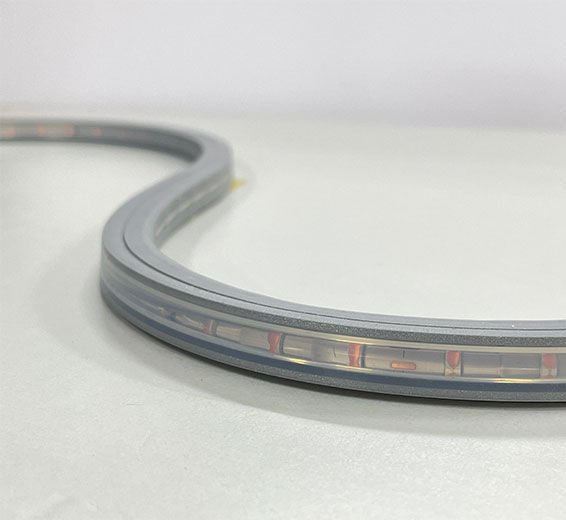

Narrow Emitting,Top bend & Side bend;

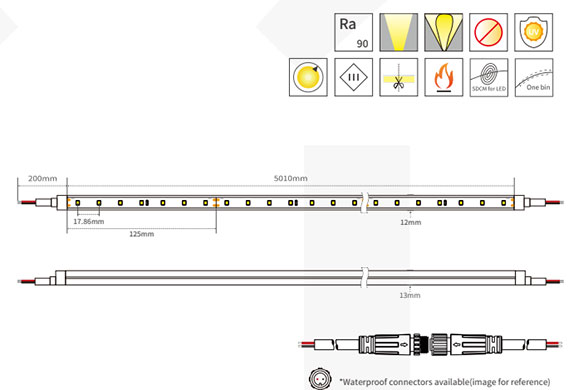

Silicon extrution technology,W12*H13mm small dimensions,Revolutionary 2X optic design;

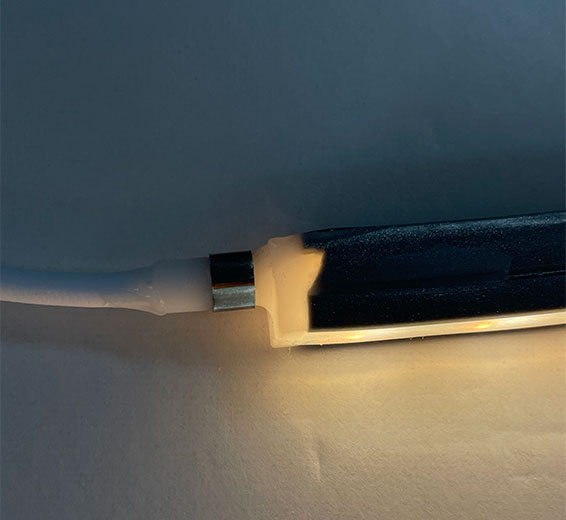

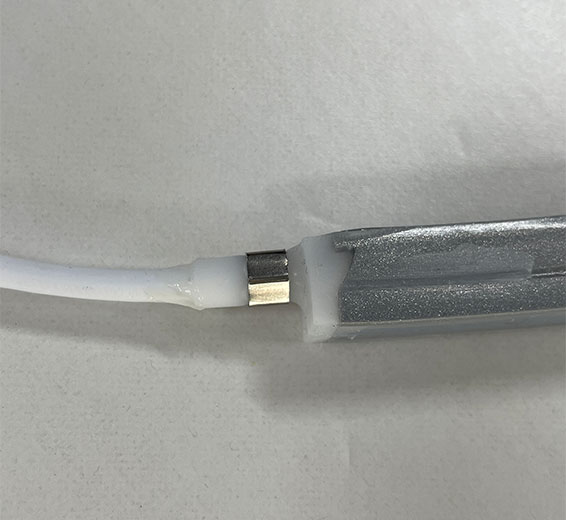

Ultra-long connection up to 10m when single-end powered,three types of wired output for easy use,end cap of same size, perfect lighting without any dark area or dot;
Complete accessories , Reliable Food-grade Silicon with silver-gray case.

Parameter Details

Led Type:

SMD2835
Lens Angle:

23°
Led/M:

56
Bending Direction:

3D
Color:

Static color-white
Power per meter:

10W
Control Mode:

Swtich/Dimming
Working temperature:

-20°C-45°C
Voltage:

DC24V
Lumens output：

30000K

680lm/M
4000K

730lm/M
5000K

780lm/M
6000K

830lm/M

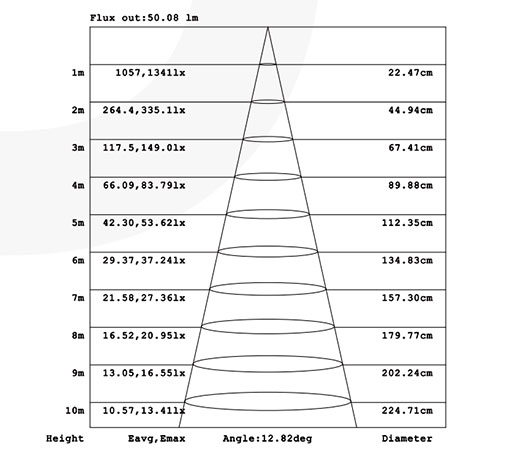

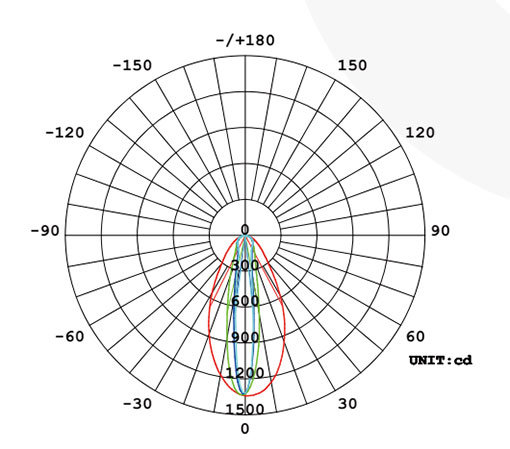

Light Distribution

AVERAGE BEAM ANGLE(50%):26.4DEC

Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.

download

UN-BJ-DC24-2835-56-10-930-W10-1213-ZC-IP65-T23.IES

UN-BJ-DC24-2835-56-10-930-W10-1213-ZC-IP65-T23.pdf

UN-BJ-DC24-2835-56-10-930-W10-1213-ZC-IP65-T23-EN
