UN-BJ-DMX-DC24-5050RGBW-60D10S-18-940-1220-C-IP65

home Products Neon Strip

UN-BJ-DMX-DC24-5050RGBW-60D10S-18-940-1220-C-IP65

One bin for luminous uniformity, soft, no light spot;
Great performance under the operating temperature -20 ° C ~ +45 ° C .
Flame & saltwater resistant, IP65, a great many varieties of light colors well-applied for different requirements.

Parameter Details

Bending Direction:

Side bend
Color:

Pixel chasing
Control mode:

DMX
Led Type:

5050
Led/M:

60
Power per meter:

18W
Working temperature:

-20°C-45°C
Voltage:

DC24V
Lumens output：

2700K

135
3000K

143
4000K

160
6000K

155
R

46
G

118
B

60
RGBW

-

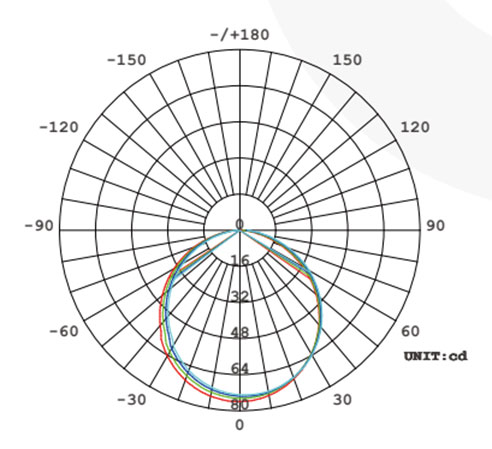

Light Distribution

AVERAGE BEAM ANGLE(50%):112.1 DEG

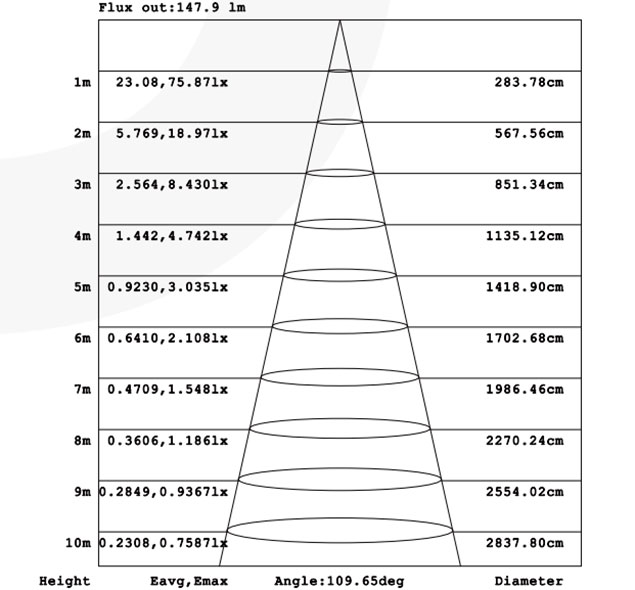

Note:The Curves indicate the illuminated area and the average
illumination when the luminaire is at different distance.

download

UN-BJ-DMX-DC24-5050RGBW-60D10S-18-9xx-1220-C-IP65-All colors light-up_IESNA95.IES

UN-BJ-DMX-DC24-5050RGBW-60D10S-18-9xx-1220-C-IP65-All colors light-up-EN

UN-BJ-DMX-DC24-5050RGBW-60D10S-18-9xx-1220-C-IP65-BLUE_IESNA95.IES

UN-BJ-DMX-DC24-5050RGBW-60D10S-18-9xx-1220-C-IP65-BLUE-EN

UN-BJ-DMX-DC24-5050RGBW-60D10S-18-9xx-1220-C-IP65-RED_IESNA95.IES

UN-BJ-DMX-DC24-5050RGBW-60D10S-18-9xx-1220-C-IP65-RED-EN

UN-BJ-DMX-DC24-5050RGBW-60D10S-18-9xx-1220-C-IP65-WHITE_IESNA95.IES

UN-BJ-DMX-DC24-5050RGBW-60D10S-18-9xx-1220-C-IP65-WHITE-EN

UN-BJ-DMX-DC24-5050RGBW-60D10S-18-940-1220-C-IP65
