UN-GJ-DC24-3030-48-24-9xx-2424-ZC-T601-IP65

Professional secondary optical processing,multiple lens,concentrated light for wall-washing & accent lighting scenario;
Cut marks for easy cut use & A wide variety of installation accessories for applications;

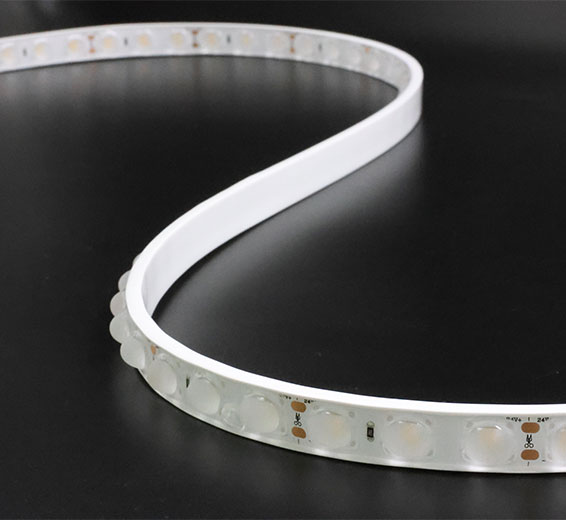

3D bend to be perfectly suitable for columns curved architectonic surfaces without any shadows or dark areas;
Flame & saltwater resistant, Anti-UV, IP65 rated;
Great performance under the operating temperature -20 ° C ~ +45 ° C .

规格参数

Led Type:

SMD3030
Lens Angle:

30°、45*60°
Led/M:

48
Bending Direction:

3D
Color:

Static color-white
Power per meter:

24W
Control Mode:

Swtich/Dimming
Working temperature:

-20°C-45°C
Voltage:

DC24V
Lumens output：

3000K

1230lm/M
4000K

1295lm/M
5000K

1290lm/M
6000K

1285lm/M

光分布

AVERAGE BEAM ANGLE(50%):45.8 DEG

Note:The Curves indicate the illuminated area the average
illumination when the luminaire is at different distance.

资料下载

UN-GJ-DC24-3030-48-24-9xx-2424-ZC-T601-IP65

UN-GJ-DC24-3030-48-24-940-2424-ZC-T601-IP65-EN

UN-GJ-DC24-3030-48-24-940-2424-ZC-T601-IP65.IES
